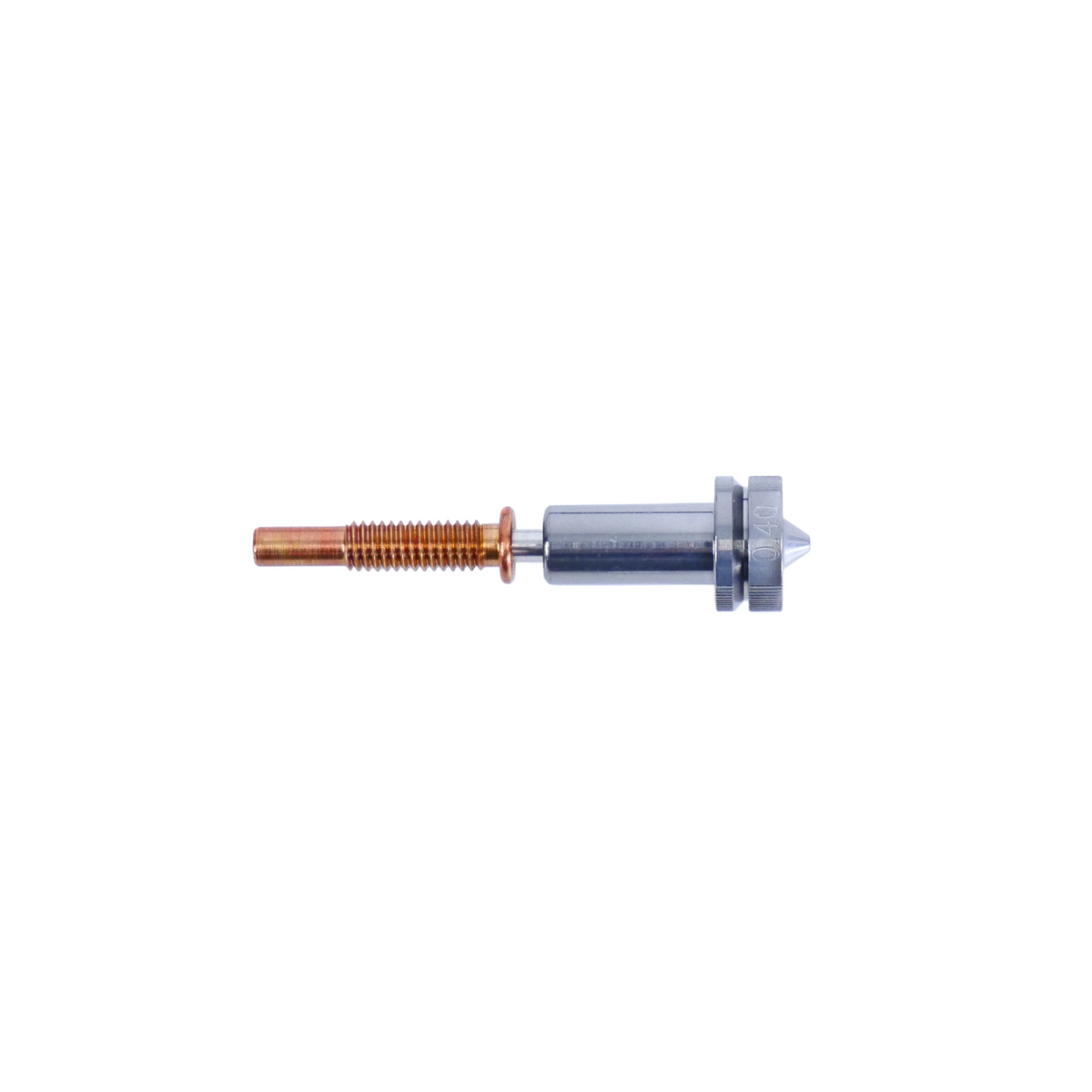

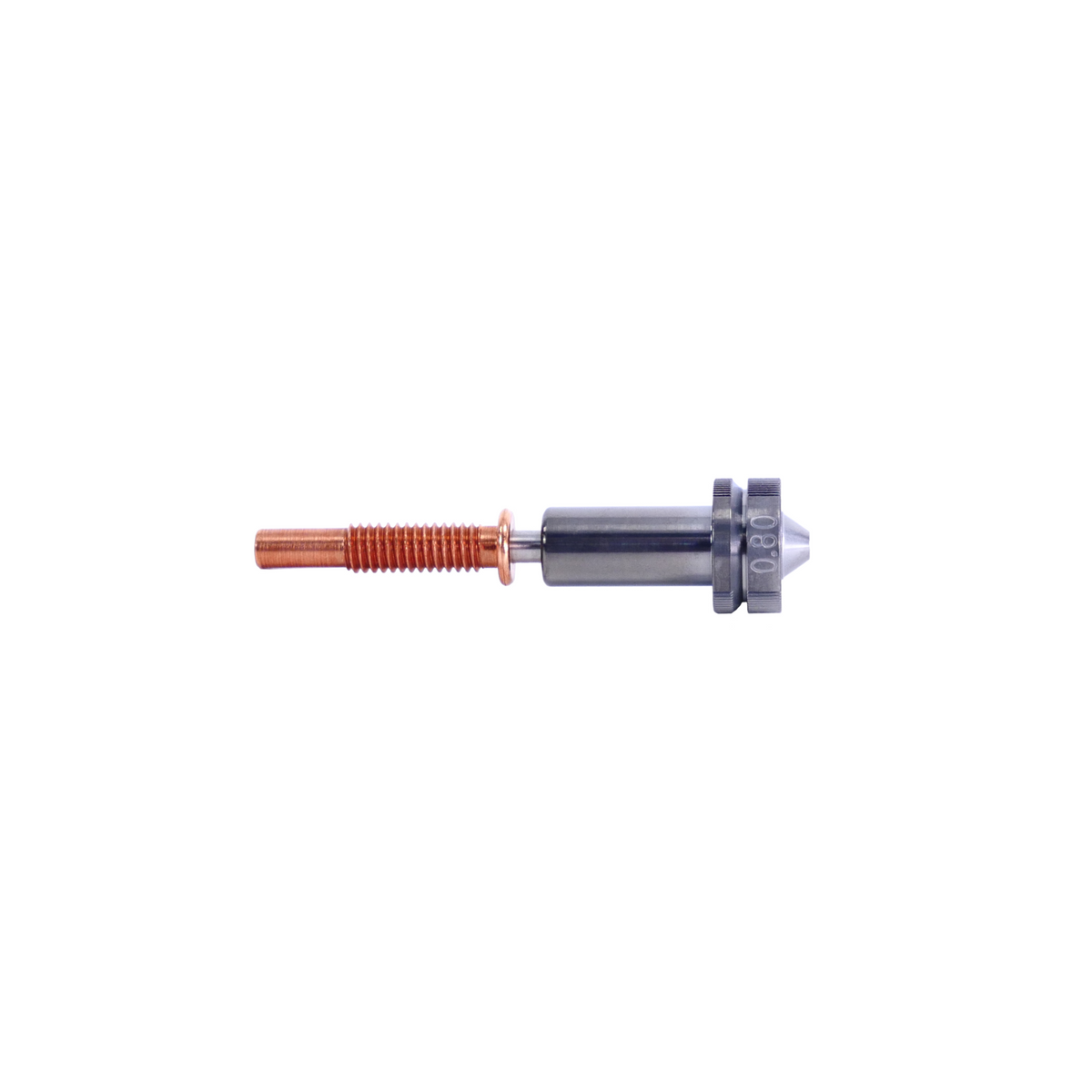

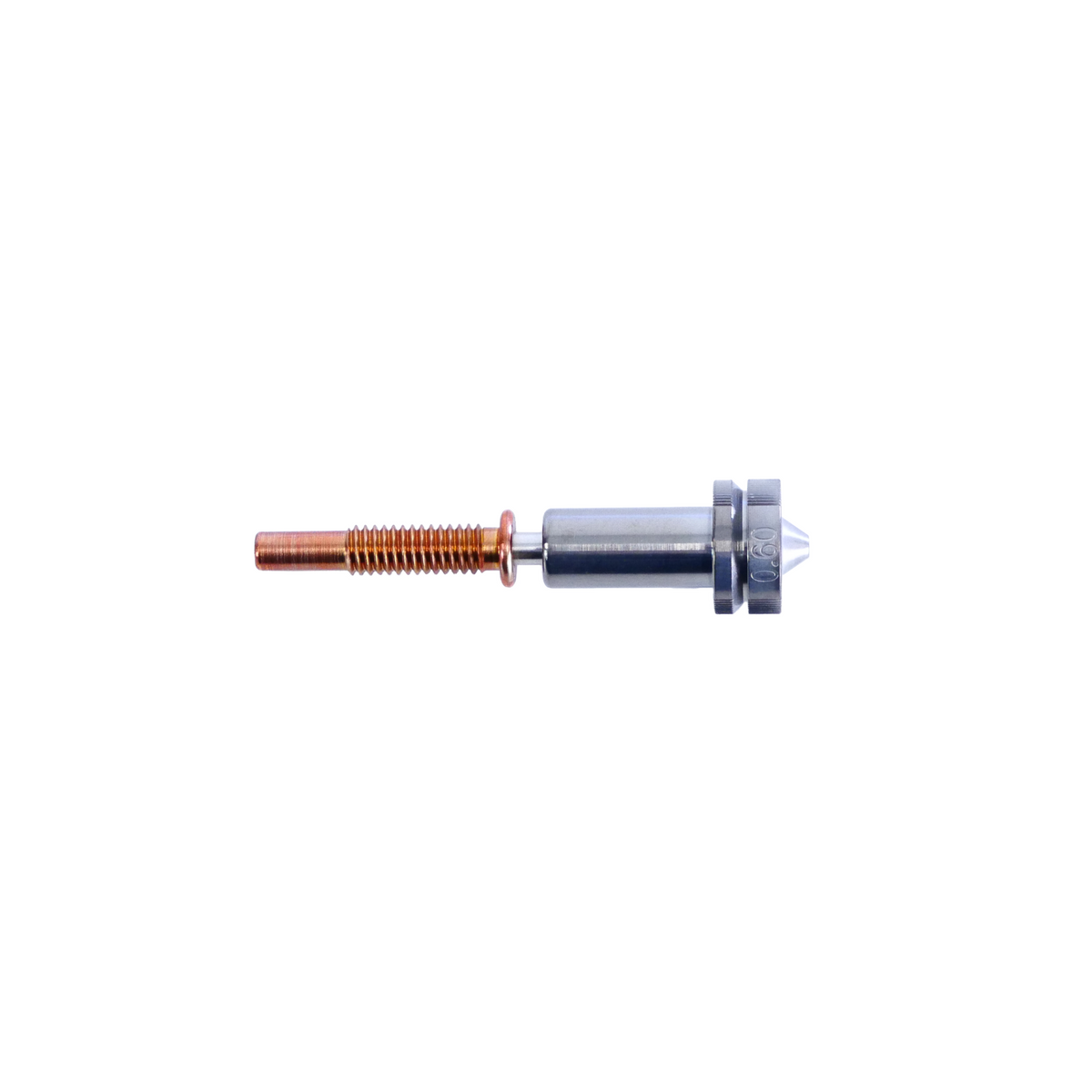

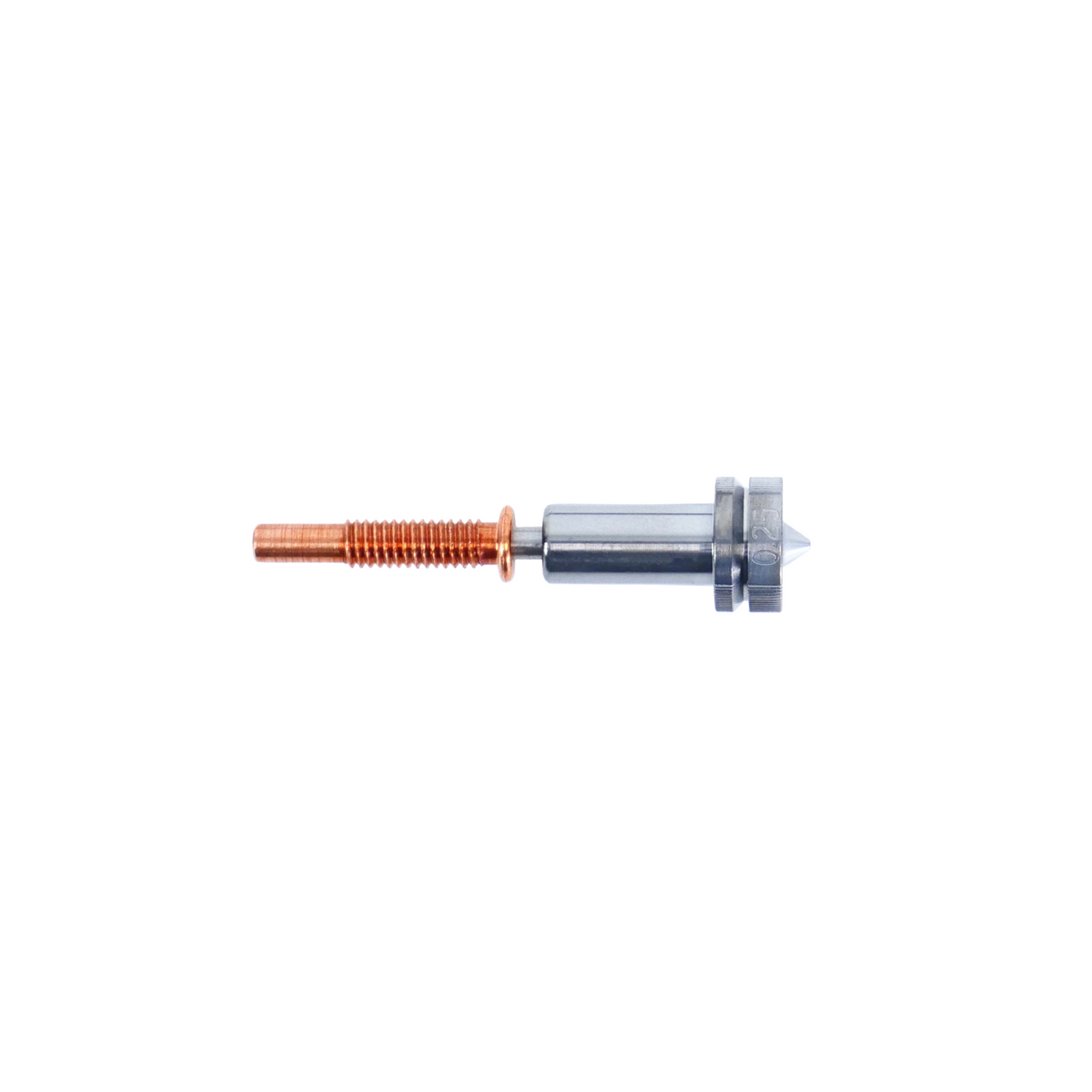

Revo HT-Abrasive Nozzle
Revo HT-Abrasive Nozzle
On order
Couldn't load pickup availability
The Revo HT-Abrasive nozzle combines the temperature capability of the HT range with abrasion resistance. On the principle of the ObXidian nozzle, it combines a hardened steel tip, a copper carrier and a copper spreader that optimises heat transfer to the heatsink. The chromium nitride coating adds protection against abrasion and corrosion as well as non-stick properties, for printing up to 500 °C.
Preassembled with its heat break, the nozzle is changed by hand, cold. It is supplied without a silicone sock.
Temperature and materials
With the 40 W and 60 W Revo HeaterCores, the temperature remains limited to 300 °C. To print up to 500 °C, E3D recommends a Revo High Temperature hotside. Some heavily filled materials, including Polymaker's PolyMide range, can cause significant wear on this nozzle. Check the minimum recommended nozzle diameter on the filament datasheet.
Technical specifications
| Brand | E3D |
|---|---|
| Reference | RC-NOZZLE-HTA-AS-0250-SPK to RC-NOZZLE-HTA-AS-0800-SPK depending on diameter |
| System | RapidChange Revo |
| Construction | Hardened steel tip, copper carrier and spreader, chromium nitride coating |
| Nozzle diameters | 0.25, 0.4, 0.6 and 0.8 mm |
| Filament diameter | 1.75 mm |
| Maximum temperature | 500 °C with Revo High Temperature hotside, 300 °C with 40 W or 60 W HeaterCore |
| Package | 1 nozzle with integrated heat break, without sock |
Compatibility
- Revo Micro, Revo Six, Revo Voron, Revo CR, Revo Hemera XS
- Revo Prusa MK3, Revo Prusa Mini
- Revo MicroSwiss NG, Revo Biqu H2 V2
- Not compatible with V6-style heater blocks
